10 ft. Tripod

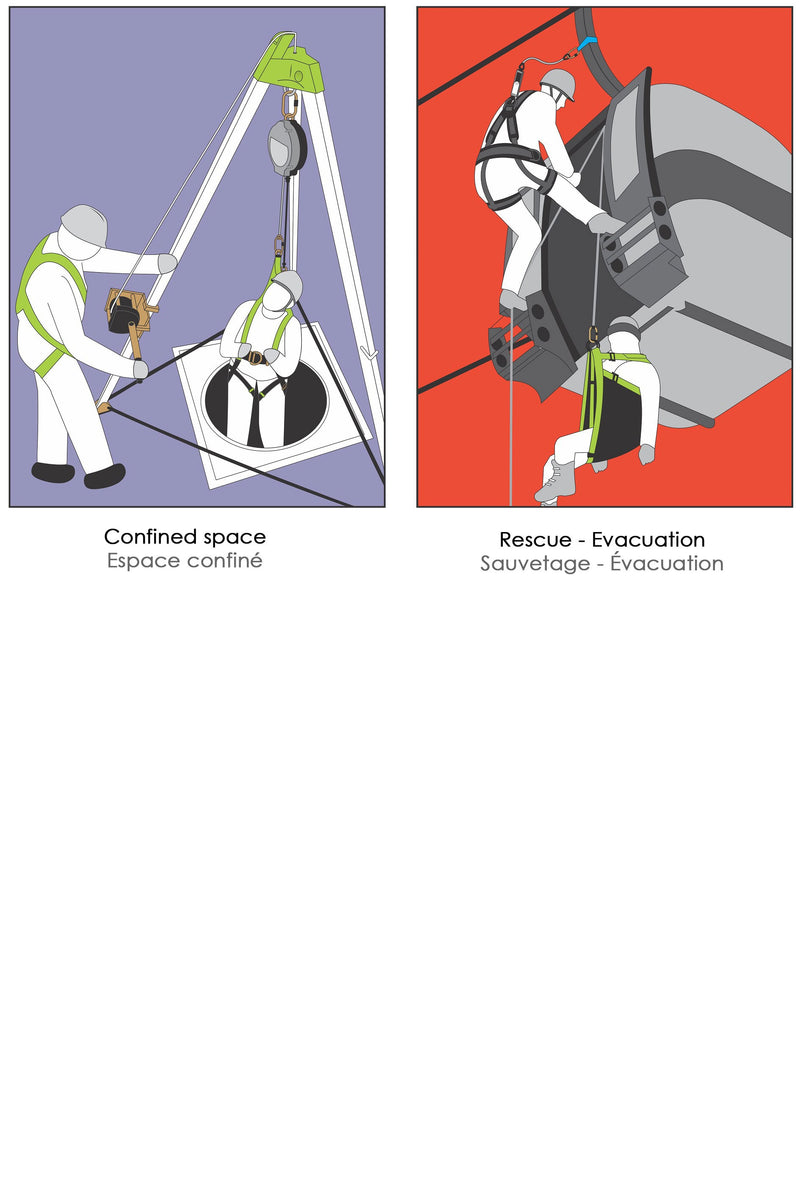

For access in confined spaces
Adjustable height : from 1.9 m to 2.9 m
Wheelbase :from 1.52 m to 2.05m
Weight :15 kg
Maximum Load Capacity : 500 kg under head / 250 kg on leg
Conforms to : EN795:2012 type B, ATEX Directive 2014/34/EU, Machinery Directive, EN 1808
HS Code : 7610 90 10
- With two mounted pulleys at the head of the Tripod in the extension of the main leg for passing a cable
- Having two auxiliary eye bolts as attachment points.
- Aluminum alloy cast head, legs in aluminium.
- Steel support-shoes provided with rubber sole to increase friction and impart more stability.
- Strength of anchorage point greater than 12 kN
- Every Tripod is provided with inbuilt fixture for attaching our winch FA 60 003 20 / FA 60 003 30 / FA 60 023 20 / FA 60 023 20R.

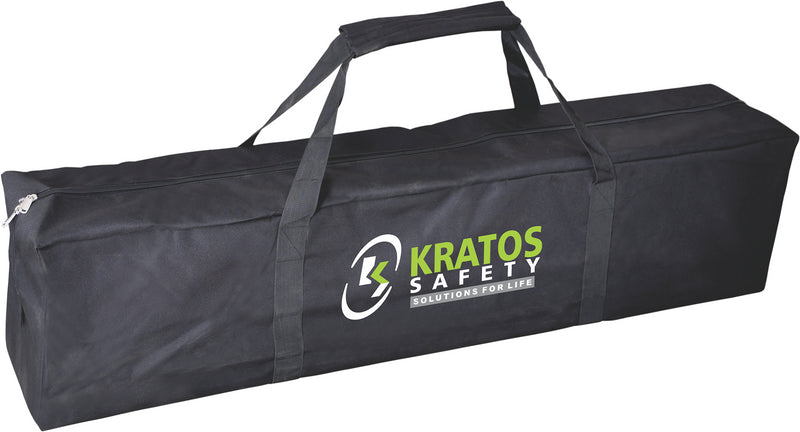

- Every Tripod is provided with Tripod Bag
To download the Tripod instructions for use, see the Attachment tab
