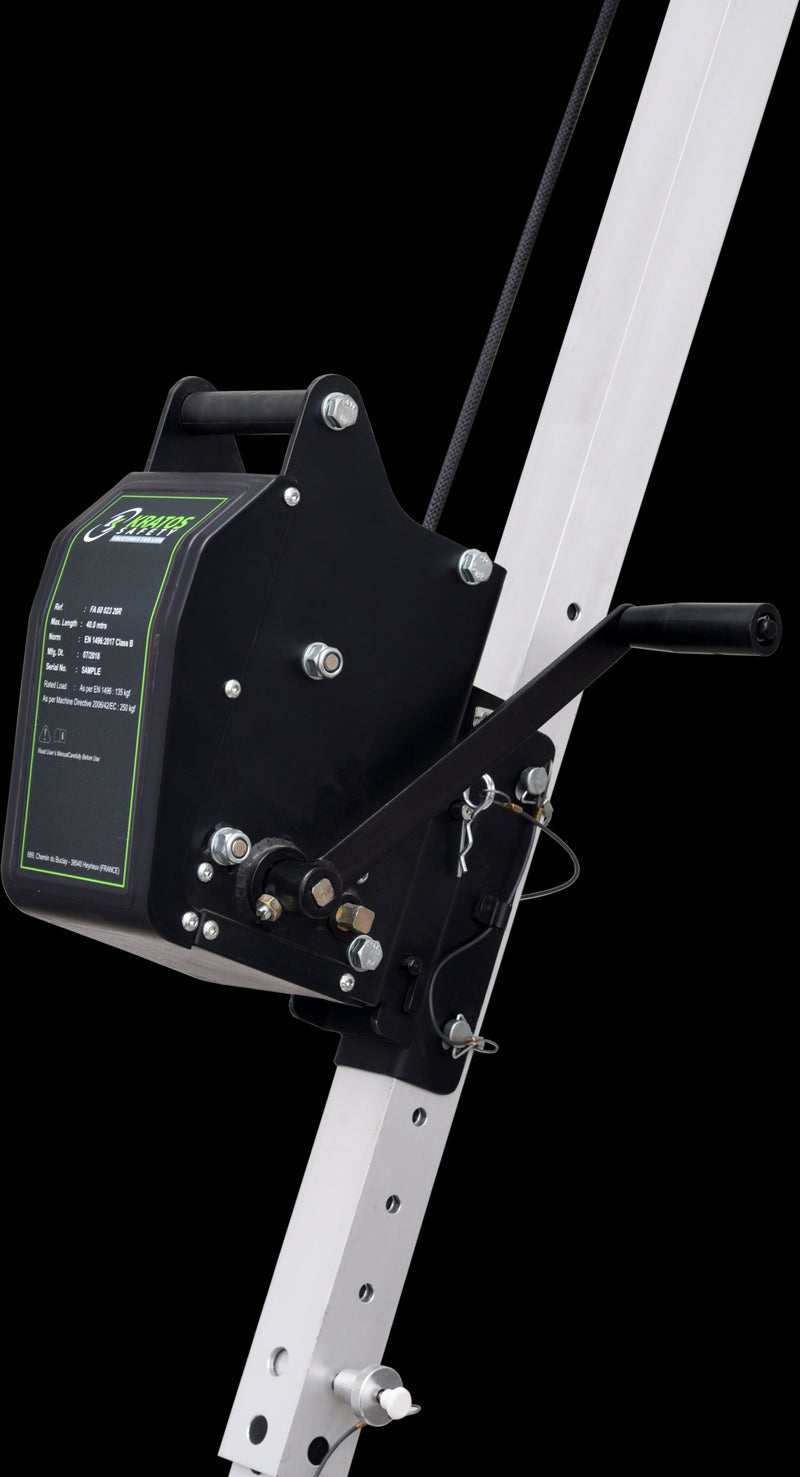

Rescue and work winch (class B) - synthetic rope, length 20 m, for Tripod & MultiSafeWay
To be used for raising or lowering of personnel or material into confined spaces.
Features a disengageable mode, that allows to unroll a large distance of rope very quickly to perform a descent/lifting operation, without having to unroll the rope by turning the crank.
Secondary Brake mechanism.
Equipped with bolting fixture for robust fitting on to the Tripod (FA 60 001 00 or FA 60 002 00).
Can also be fixed on Tripod with head-mounted double pulley (FA 60 101 00 / FA 60 102 00) through the mounting bracket set FA 60 101 02, and on MultiSafeWay (FA 60 022 00) through the mounting bracket set FA 60 022 06.
Length: 20 m.
Aramid cable diam : 6 mm.
Weight: 10.39 kg.
Compliance: Machinery Directive 2006/42/EC and EN13157 : 2004.
Safe working load (as per EN 1496:2017): 135 kg.
Max. working load (as per Machinery Directive): 250 kg.
HS Code: 84253900
To download the product instructions for use, see the Attachment tab.
