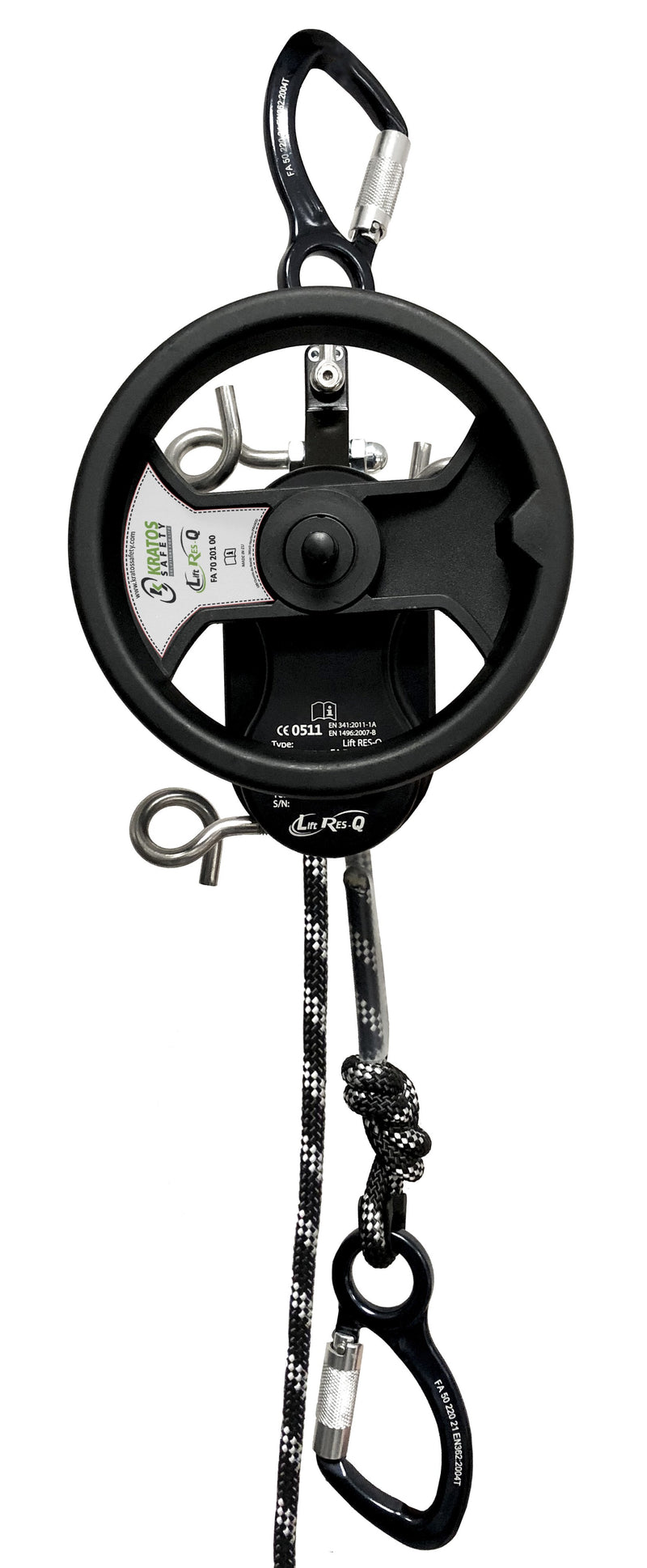

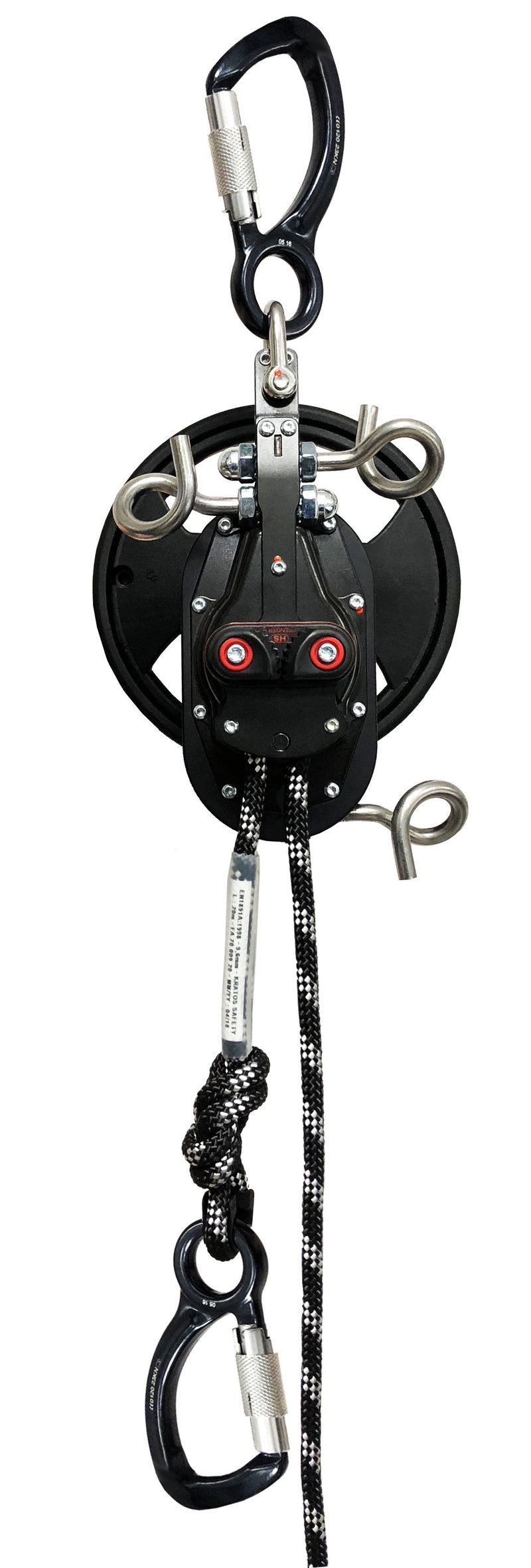

LIFT RES-Q, evacuation and rescue device, 40 m
Lift Res-Q is the perfect device for lifting and rescue operations.
Made of aluminium alloy and high-strength steel and dia. 9.6 mm semi static kernmantle rope assembled with the device.
Rope ends with double figure of 8 knots for connection with karabiner. Provided with 2 hooks ref. FA 50 220 21.
Controlled descent speed: 0.8 m / sec, regardless the weight (max. weight 225kg).
Maximum descent height: 300 m.
Maximum lifting height: 300 m.
Usable with electric screwdriver: For high ascents.
Brake system: Automatic and redundant.
Maximum no. of users: 2 users - 225 kg.
Inspection: Once a year or every 6000 m of rope.
Available in 2 lengths: 20 m (FA 70 201 20), 40 m (FA 70 201 40).
For specific lengths, you need to associate the following references:
- FA 70 201 00: device only.
- FA 70 009 99: Kernmantle rope per meter.
- FA 70 009 98: Required length of rope with double “figure of 8” knots and automatic locking hook.
Compliance: EN 341:2011-1A, EN 1496:2007 B.
